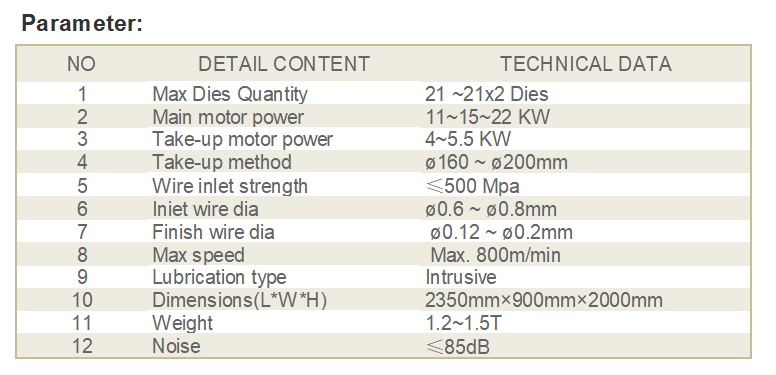

Parameter
Inlet wire Dia: Ø0.6- Ø0.8mm
Outlet wire Dia: Ø0.12- Ø0.2mm
Speed:800m/min

Feature
Automatic correction control system ,Capstan hardness ≥HRC60
Drawing speed: 14m/s at maximum operating speed, Configure motor power
And Drawing pass number according to different drawing material


Application :Owing to the structure restriction of this wire drawing machine, it is more suitable for drawing wires of smaller diameters.Wet wire drawing machine is available for drawing mild steel, carbon steel, stainless steel, copper, aluminum and alloys.
