Electrical galvanized product line

Process flow:

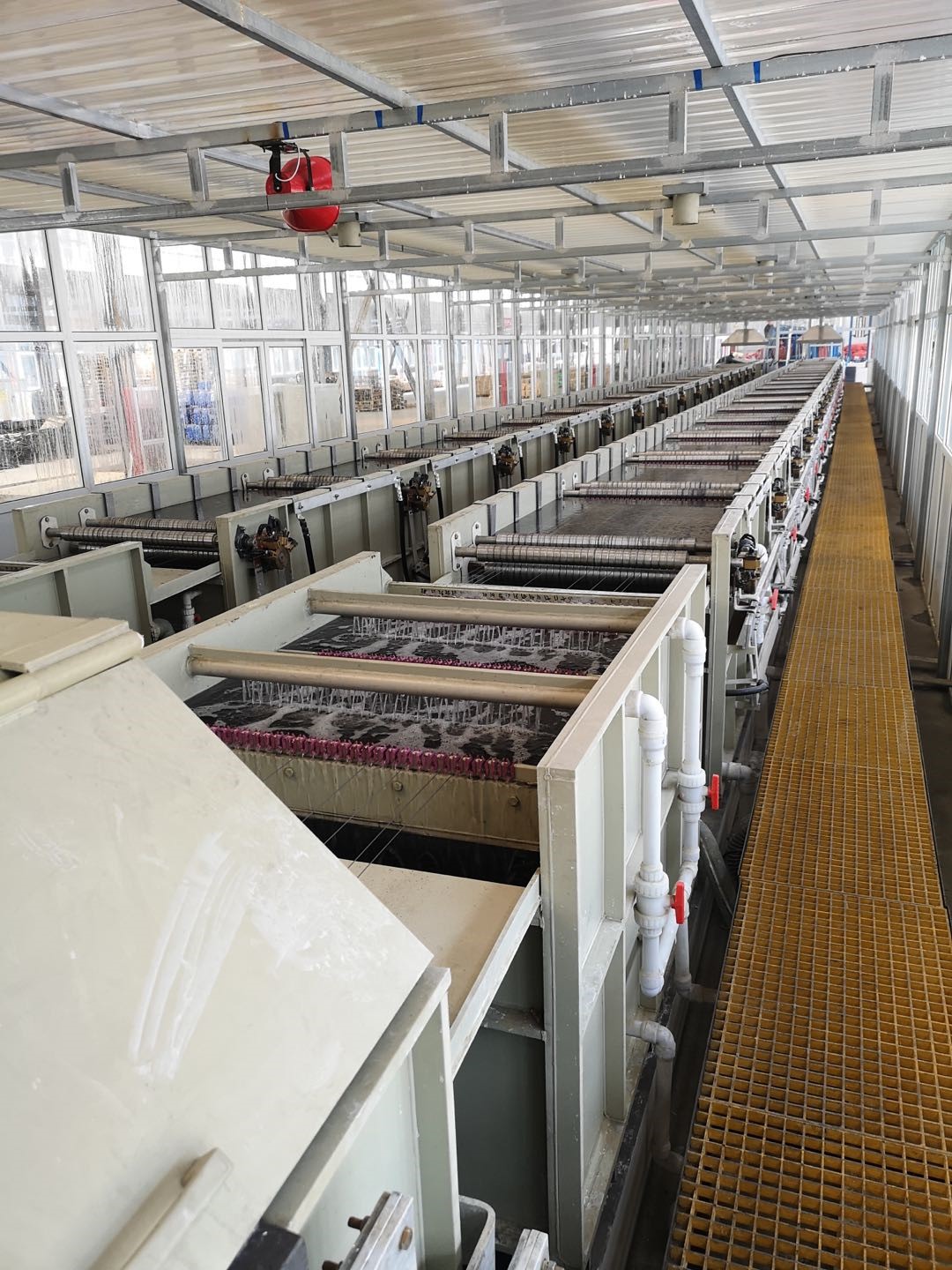

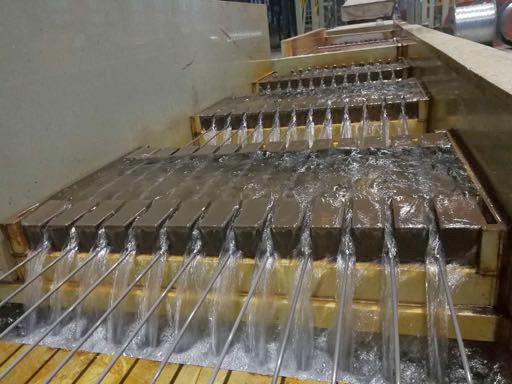

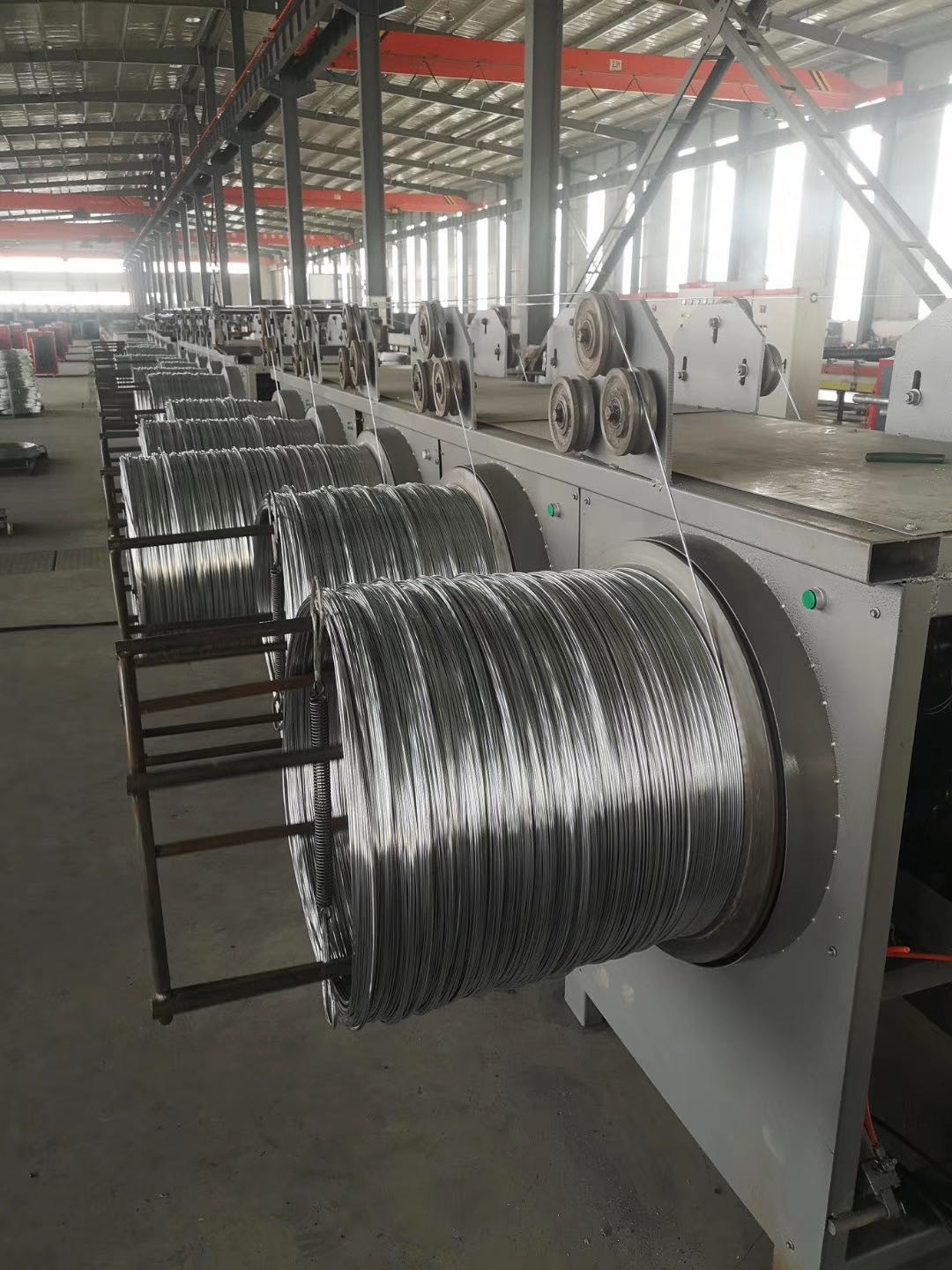

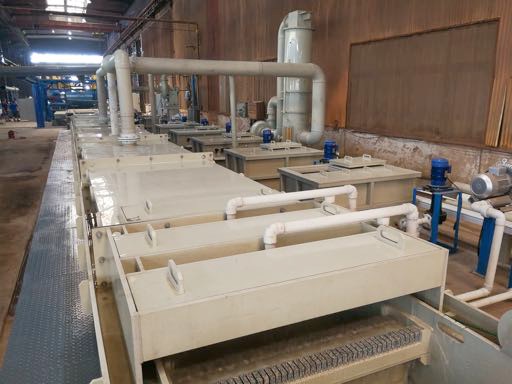

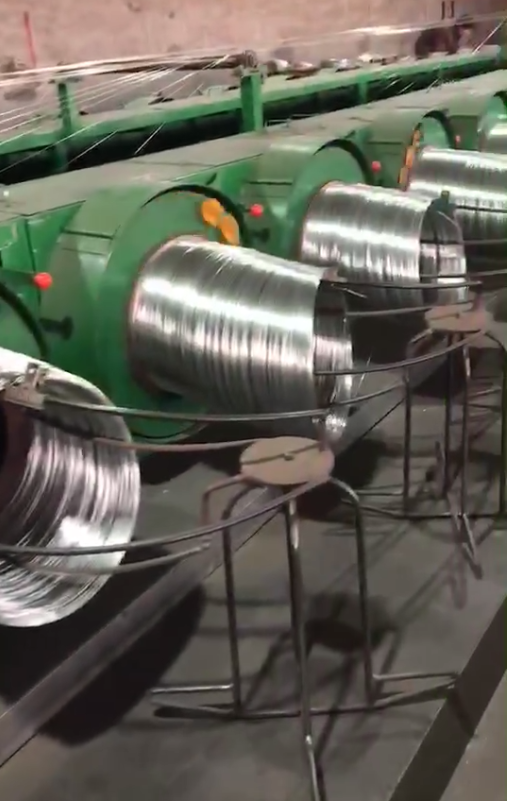

(1) Pay-off bobbin→ Space 2.5 meters → (2) electrolytic acid washing (12m) →(3) water washing (2.5m)→ (4) Overflow washing (2m) →(5) electro galvanizing (27m)→(6) water washing (2m)→(7) hot water washing (2m)→(8) drying (5m)→Space 2.5 meters→(9) wire collection (blocks type)

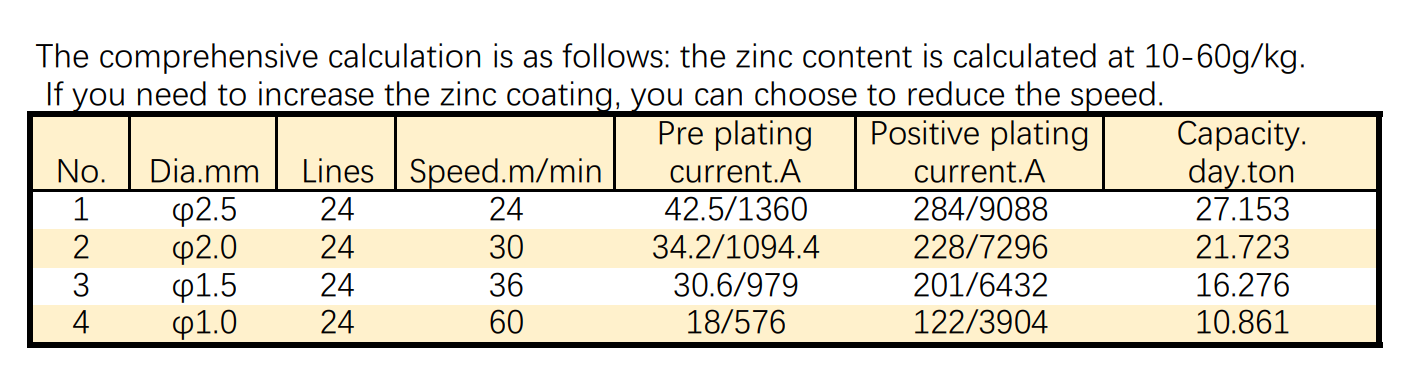

Example 24lines product line for φ4mm

Product scope: φ0.8mm~4mm

Zinc coating：10~50g/m2

 Working speed 24m/min~60m/min
